United StatesThe UNO Control System is supplied with a pre-programmed MCS-6E Universal Mini Controller and single cyclic switch.
UNO Control System
A single switch solution that has a momentary cyclic option and also has dual colour (red/blue) LED illumination that changes colour with each press to display selected ‘mode of operation’ or to indicate an ‘off’ status.
More product information
About the product
Benefits
Controller (MCS-6E) Features and Functions:
- Pre-programmed to switch on two sets of outputs depending how many times the single push button is pressed
- 6 x 10Amp solid state relay outputs
- Collective total current rating is 24 Amp
- Each output can be current protected set at 5 or 10 Amps – no external fuses required
- Side light input for illumination control – positive
- Input Ignition input for wake-up control – positive
- Input Low battery ‘auto shut down’ feature sets in when voltage level falls below 11.5 volts for more than 30 seconds
- Automatic ‘sleep mode’ sets in after periods of inactivity or low voltage
- 12 and 24 volt operation

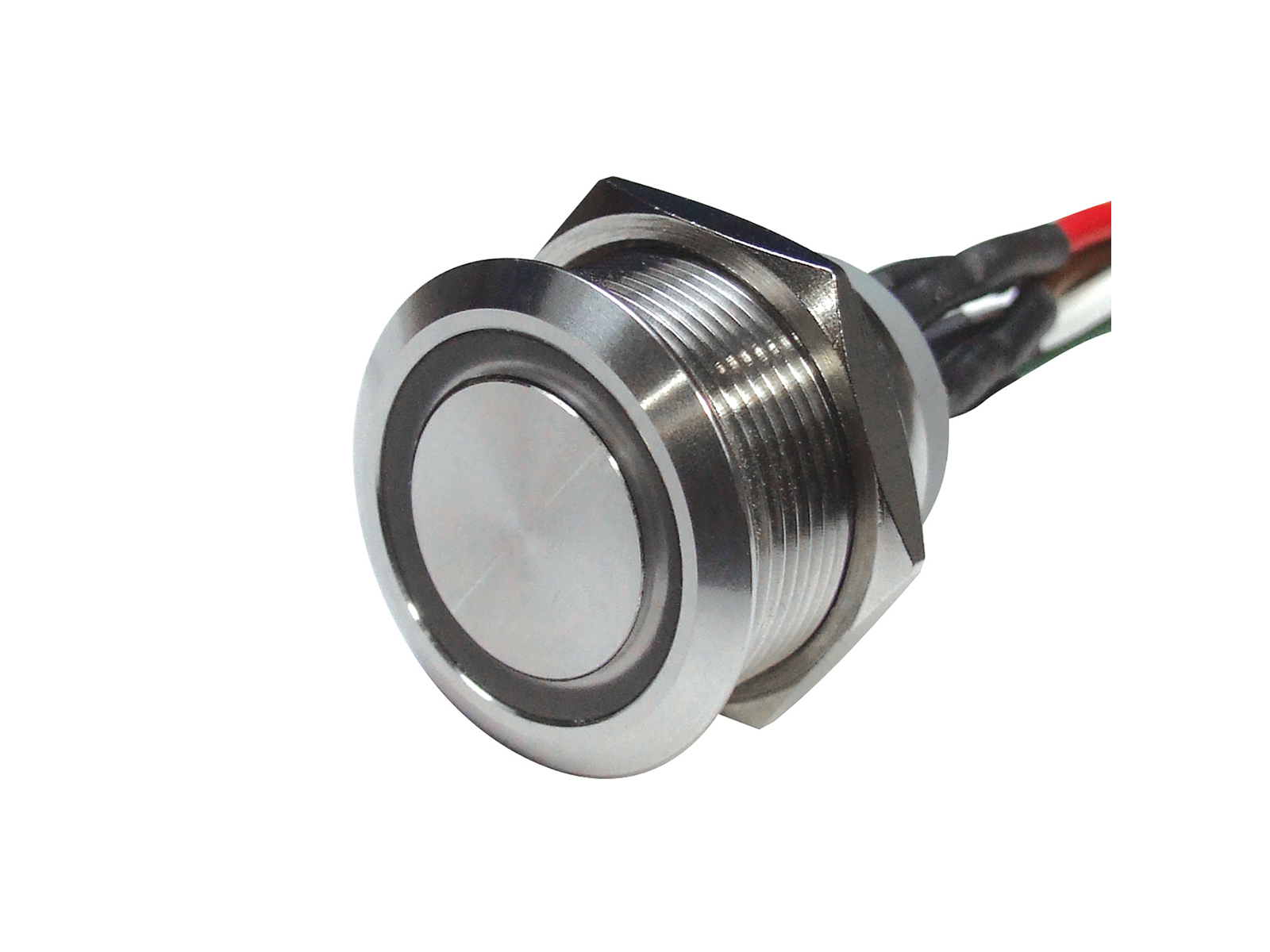

Single Cyclic Switch Features and Functions:

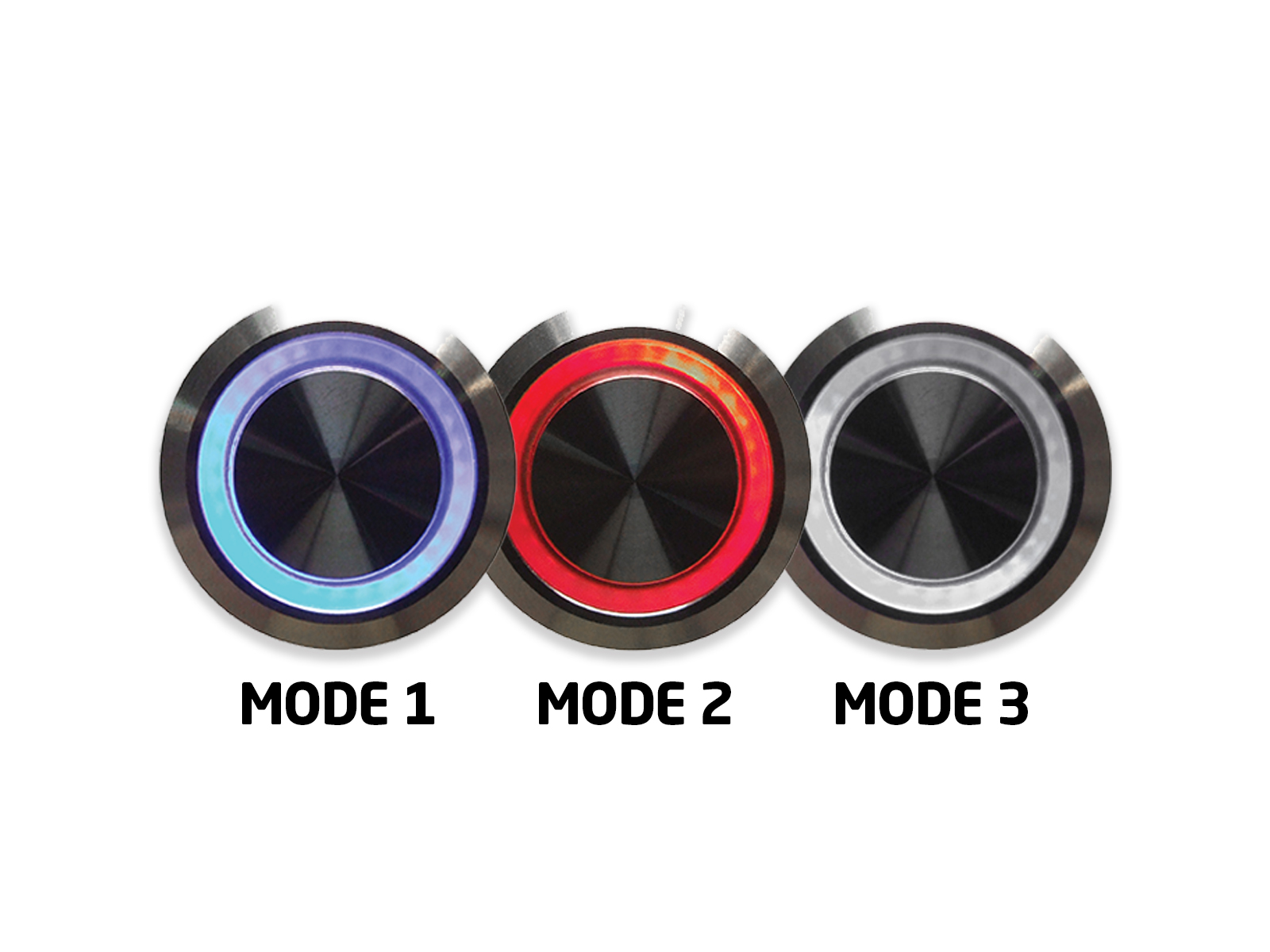

- Momentary 3-way cyclic switch with dual colour (blue and red) LED illumination that changes colour with each press to display the selected mode of operation or is unlit when off
- 22mm front bezel micro switch
- Brushed steel anti-vandal switch
- Dual colour LED – blue/red
- Ingress protected to IP65
3 year manufacturers warranty
Installation Guide
Input / Output Functions
Drawings
Technical Data
- Nominal Voltage
- 12/24 VDC
- Current Consumption
- Collective total current rating - 24 Amp
- Outputs
- 2 Sets
- Number of Buttons
- 1
- Number of Indication LEDs
- Dual colour (red/blue) for 'mode of operation' or to indicate an 'off' status
- Length
- 118/95mm
- Width
- 78mm
- Height
- 32mm
- Diameter
- 22mm micro switch
- Protection Class
- IP65 (cyclic switch)
