United StatesThe amplifier built into the aerial antenna increases the signal allowing for reception even in poor radio reception areas.

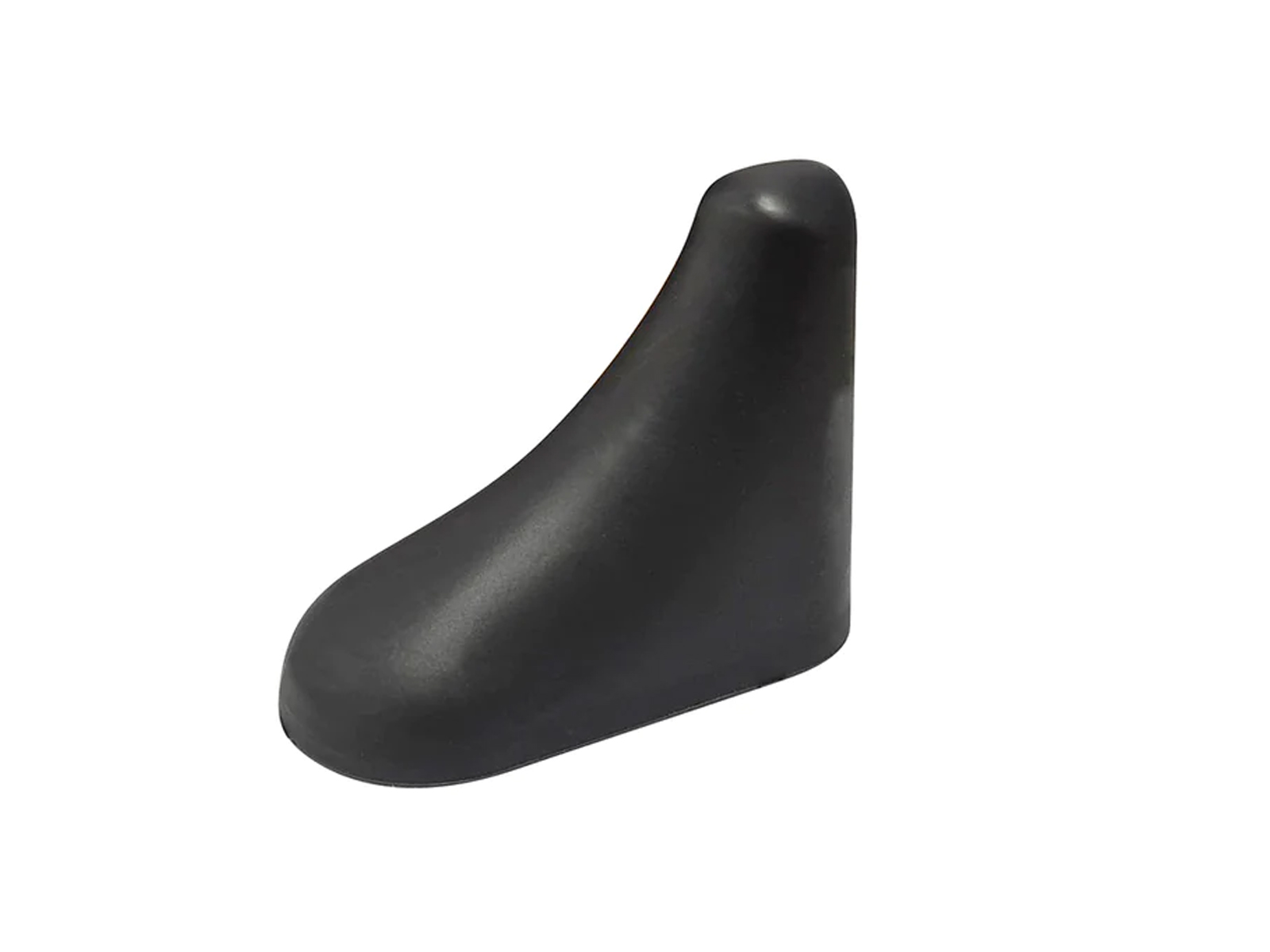

Shark Fin Antenna
Designed to replace existing aerial unit with an aerodynamic, low profile and vandal proof solution, the Shark Fin antenna provides functionality with great looks.
More product information
About the product
Benefits
- Cellular radio in the GSM 2G, UMTS 3G and LTE 4G Band
- Radio area WLAN/Bluetooth
- Active GPS/GLONASS Antenna (phantom power supply)
- Small installation depth of 15mm
- Easy to install
- Only one hole for 3 services

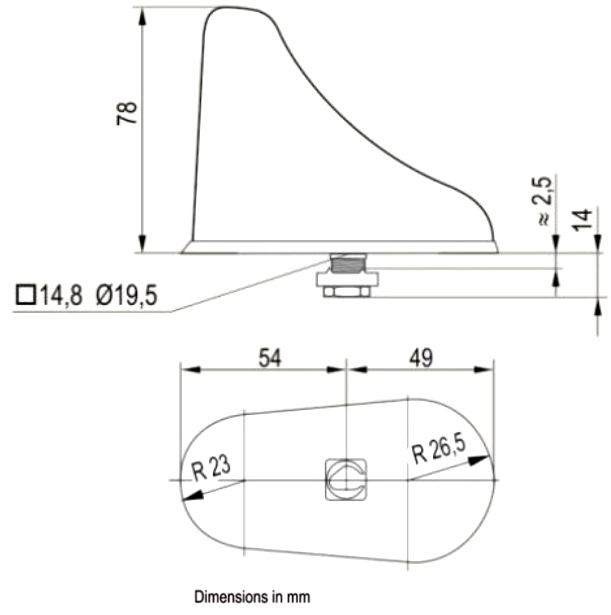

Drawings
Downloads
Technical Data
- Power Consumption
- 4W
- Impedance
- 50Ω
- Length
- 103mm
- Height
- 78mm
| Model AEX-S-ANT-1 | |||||
|---|---|---|---|---|---|
| Frequency Band | LTE 700/800 / GSM 850/900 | LTE 1800/2100 / GSM 1800, UMTS | LTE 2600 | WLAN/Wi-Fi | GPS/GLONASS |
| Frequency MHz | 698 - 960 | 1710 - 2170 | 2500 - 2690 | 2400-2485 / 4900 - 5900 | 1575,42 / 1602 - 1610 |
| Amplification Type | 28 ± 3 dB | ||||
| Gain | 2 dBi | 2 dBi | 2 dBi | 2 dBi | 32 dBic Type |
| Polarisation | Vertical | Vertical | Vertical | Vertical | RHCP |
| Impedance | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| VSWR | ≤ 3,0 : 1 | ≤ 2,0 : 1 | ≤ 2,0 : 1 | ≤ 2,5 : 1 | ≤ 1,5 : 1 |
| Maximum Power | 4W | 4W | 4W | 4W | 4W |
| Isolation | ≥ 20 dB Radio/Mobile | ≥ 20 dB Radio/Mobile | ≥ 20 dB Radio/Mobile | ≥ 20 dB Radio/Mobile | ≥ 35 dB |
| Noise Figure Type | 1,7 dB | ||||
| Power Supply | + 3,3...5,0 V / 15...35 mA | ||||
| Cable RG 174 | 235mm | 235mm | 235mm | 190mm | 165mm |

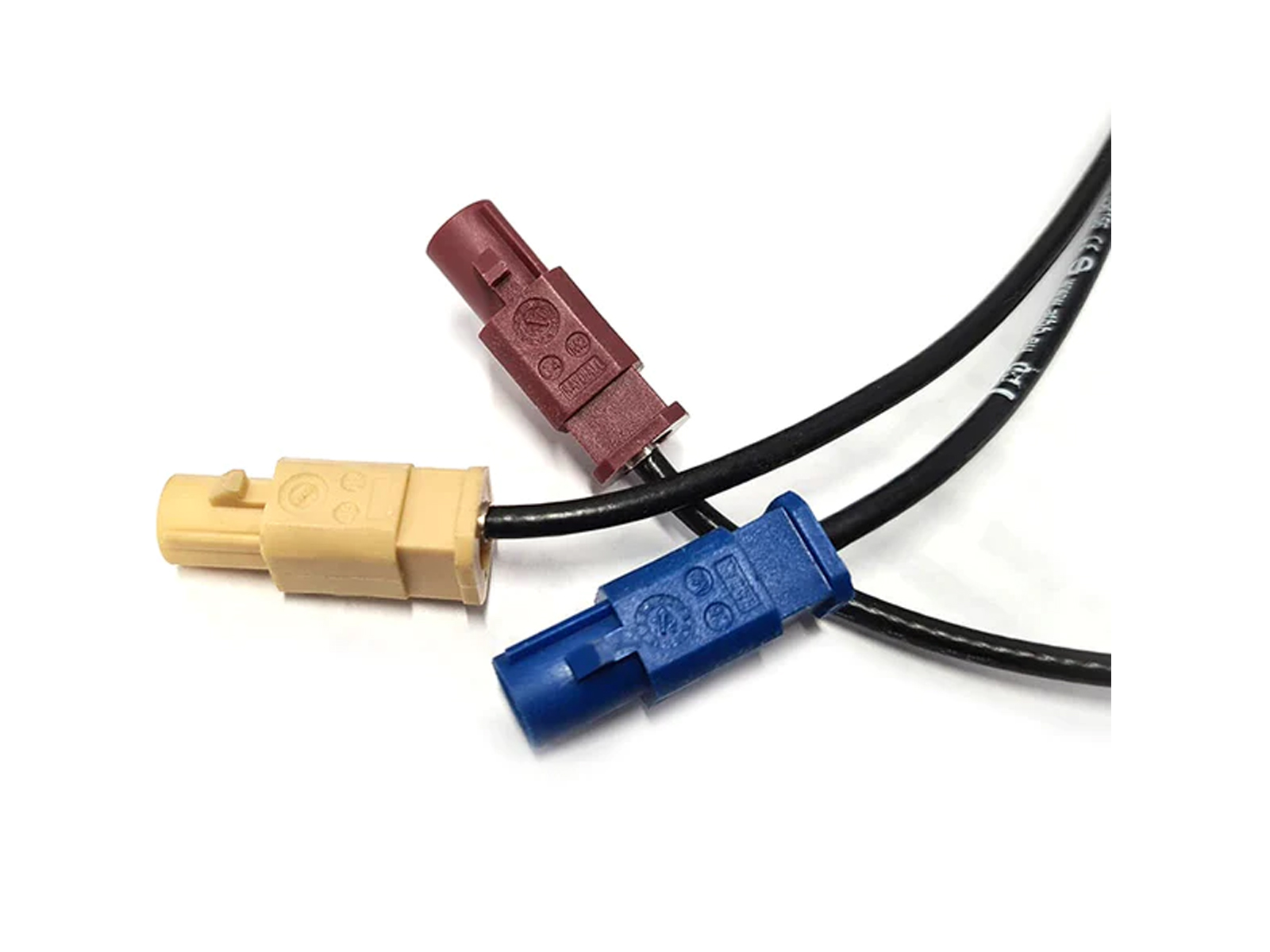

| Connector | FAKRA (m)-D | FAKRA (m)-D | FAKRA (m)-D | FAKRA (m)-I | FAKRA (m)-C |
