RWL-52

More product information

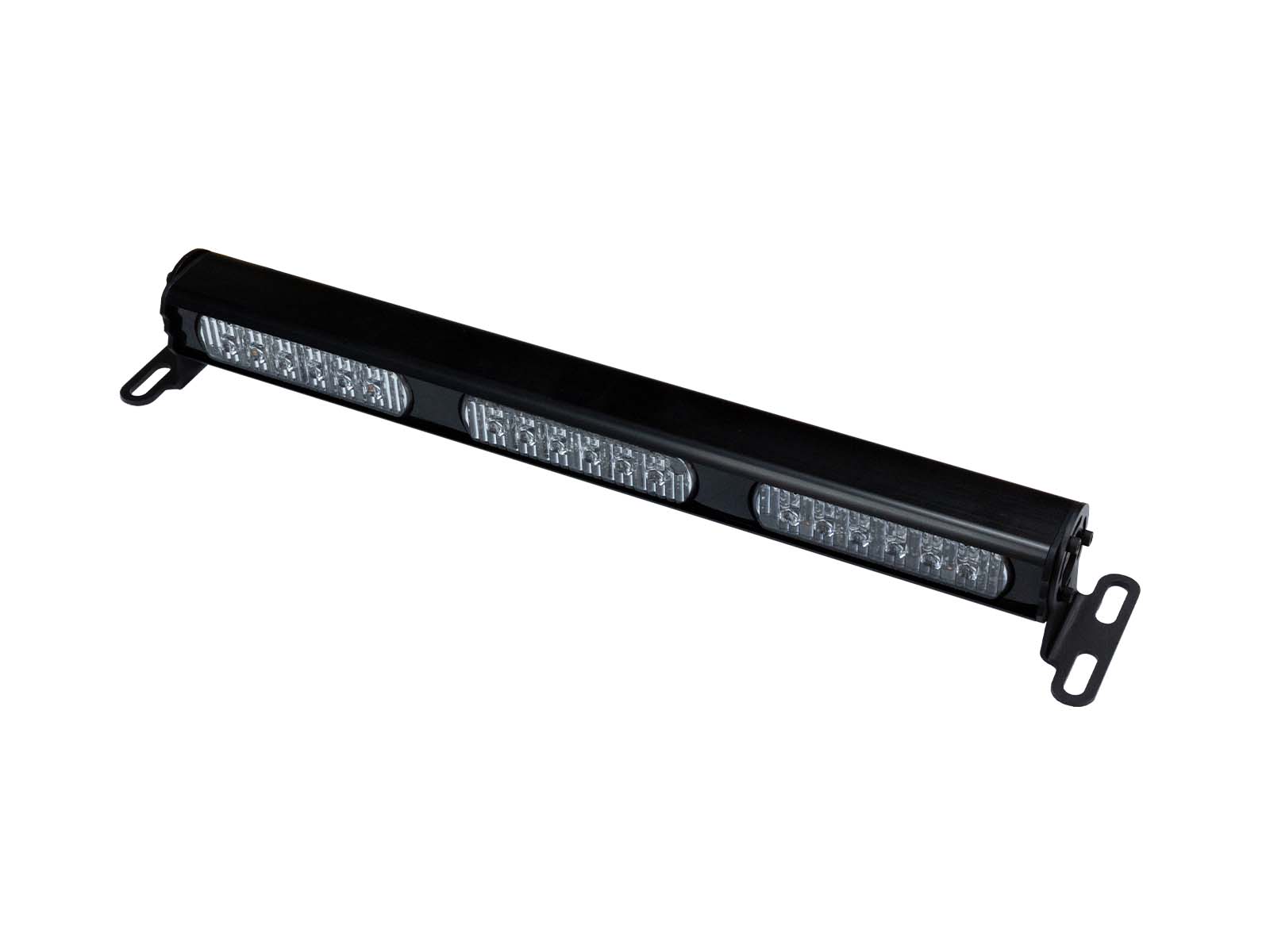

The RWL 52 rear warning bar is intended for installation on the rear of the vehicle and offers numerous variation options.

Developed as a warning system, the RWL 52 warns incoming traffic of danger spots at an early stage.

By using the L52 2C modules, the RWL 52 can also be used in combination as a blue light extension.

Direction indicators and / or brake lights are just as possible as the integration of white modules as work lights.

Operating Voltage: 9 - 32 VDC
Nominal Voltage: 12/24 VDC
Current Consumption: with L52:
12V: 1.0A
24V: 0.5A

with L52 2C:
12V: 0.8A
24V: 0.4A
Interface: Hard wired

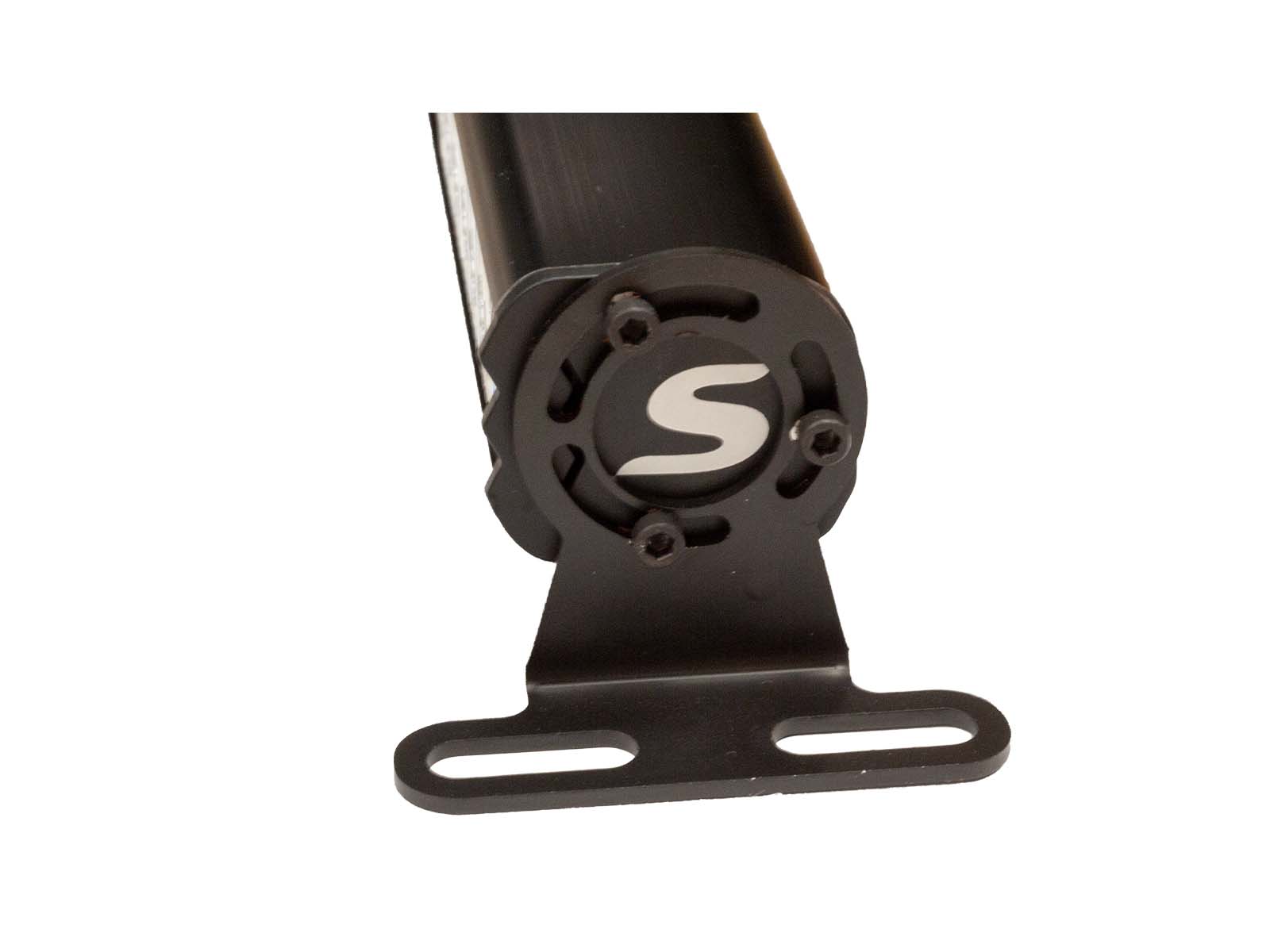

Mounting: Built-on
Housing Colour: Black

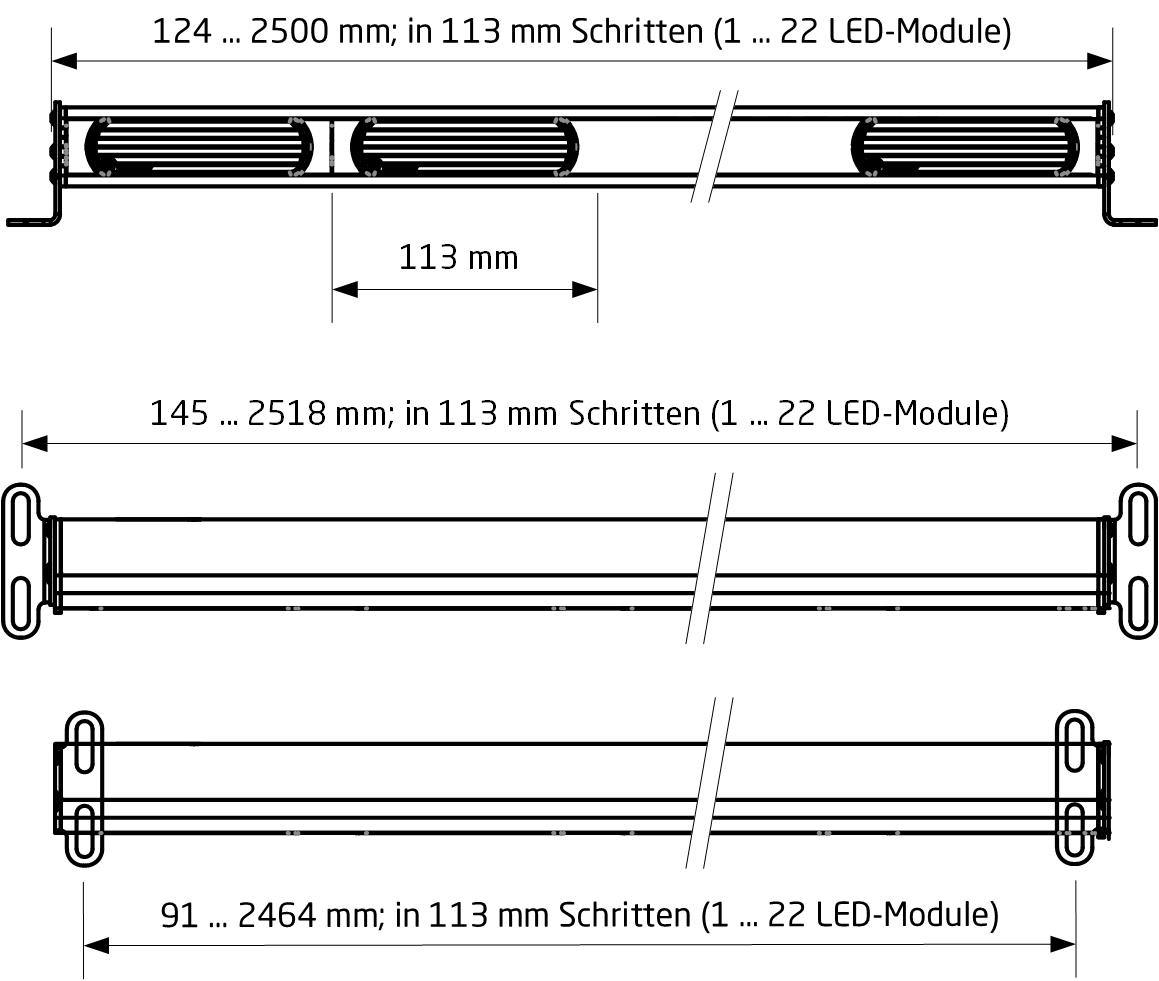

Length: 160 ... 2536mm

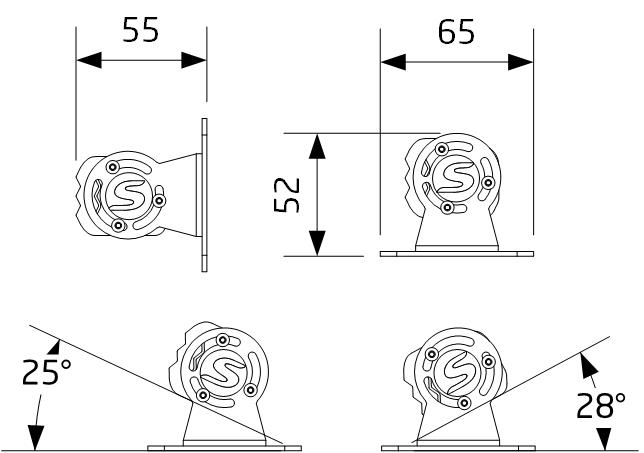

Width: 65mm
Height: 55mm
Approvals: with L52:
E5-00044; blue, class 2
E5-00045; amber, class 2
E5-00046; red, class 1
E5-05235; EMC

with L52 2C:
E5-00056; blue/xx, class 1
E5-00057; amber/xx, class 1
E5-00060; xx/red, class 1
E5-05337; EMC

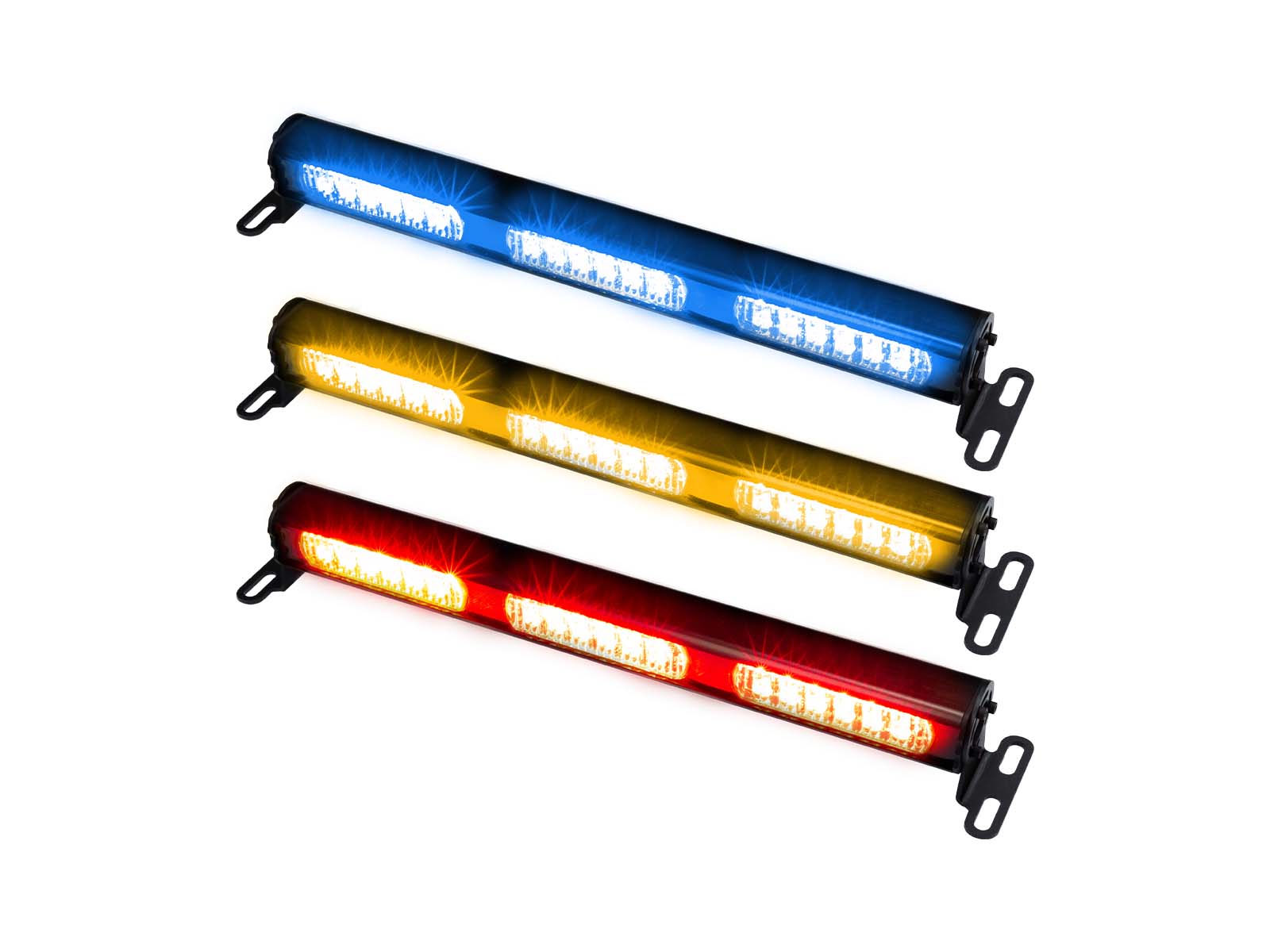

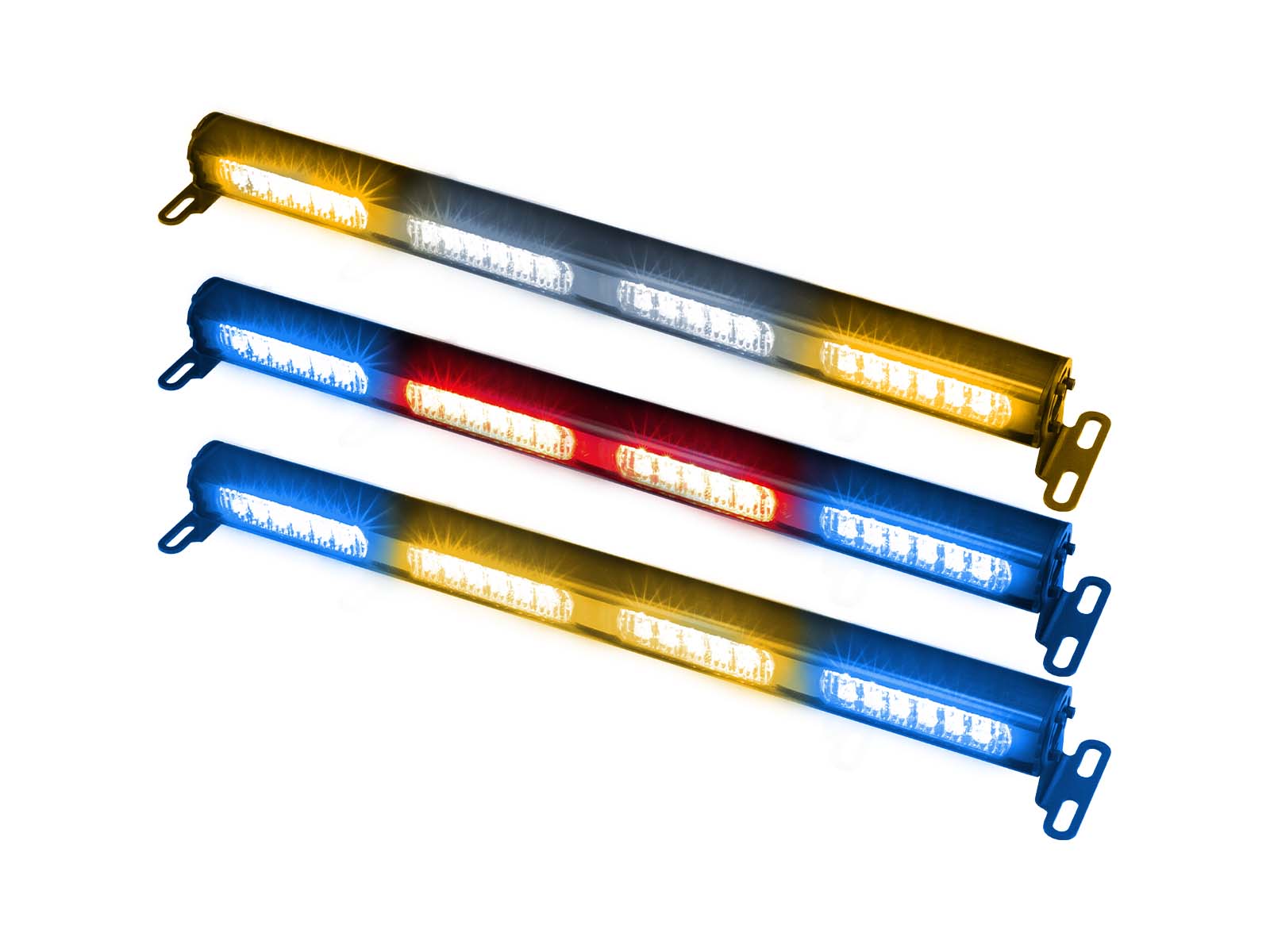

	Possible module-colours
with L52	blue, amber, red, green, white
with L52 2C	blue/amber, blue/red, blue/white, blue/green, amber/white, amber/red, amber/green, red, white
