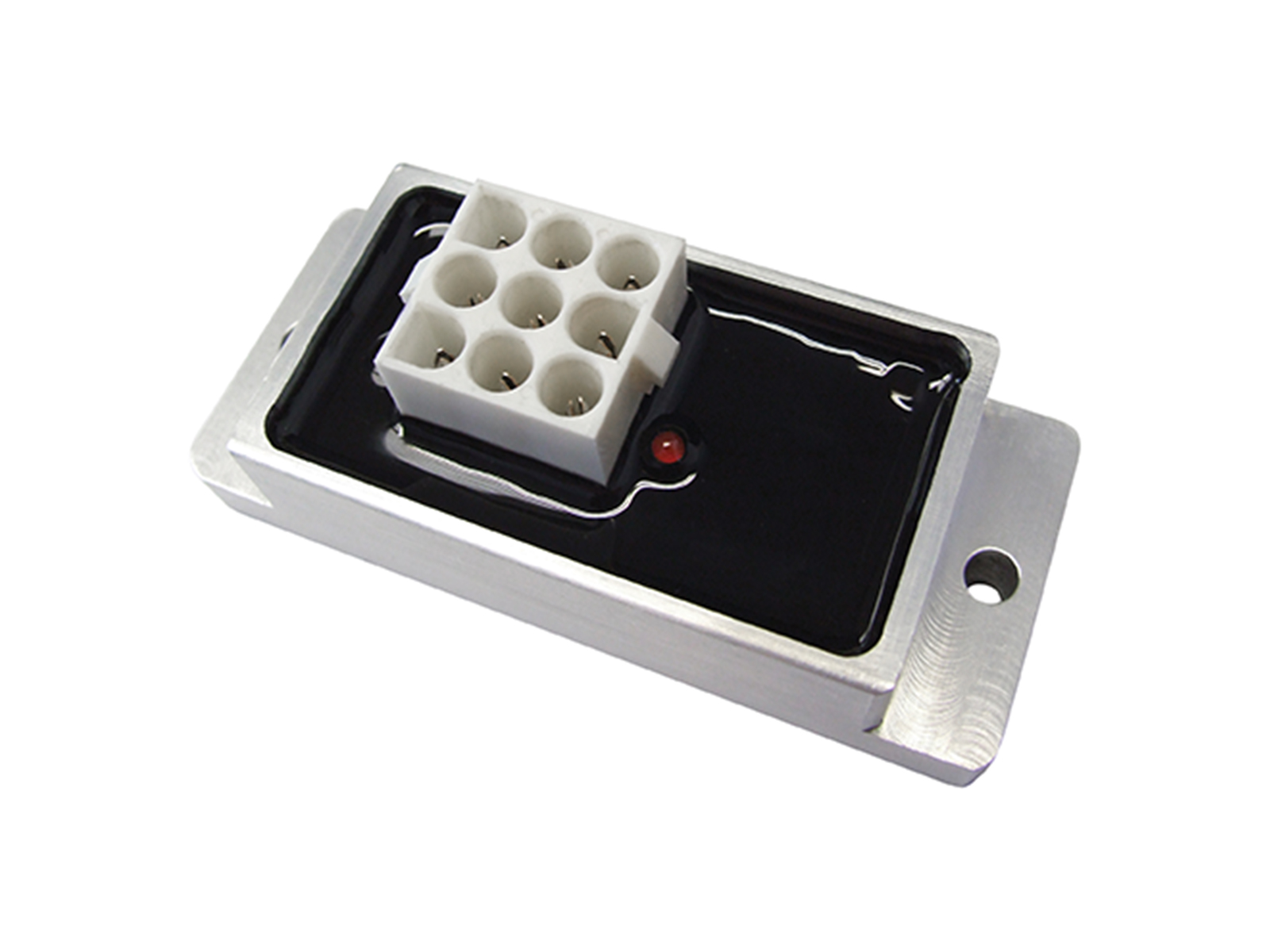

Mini Flasher Angle View

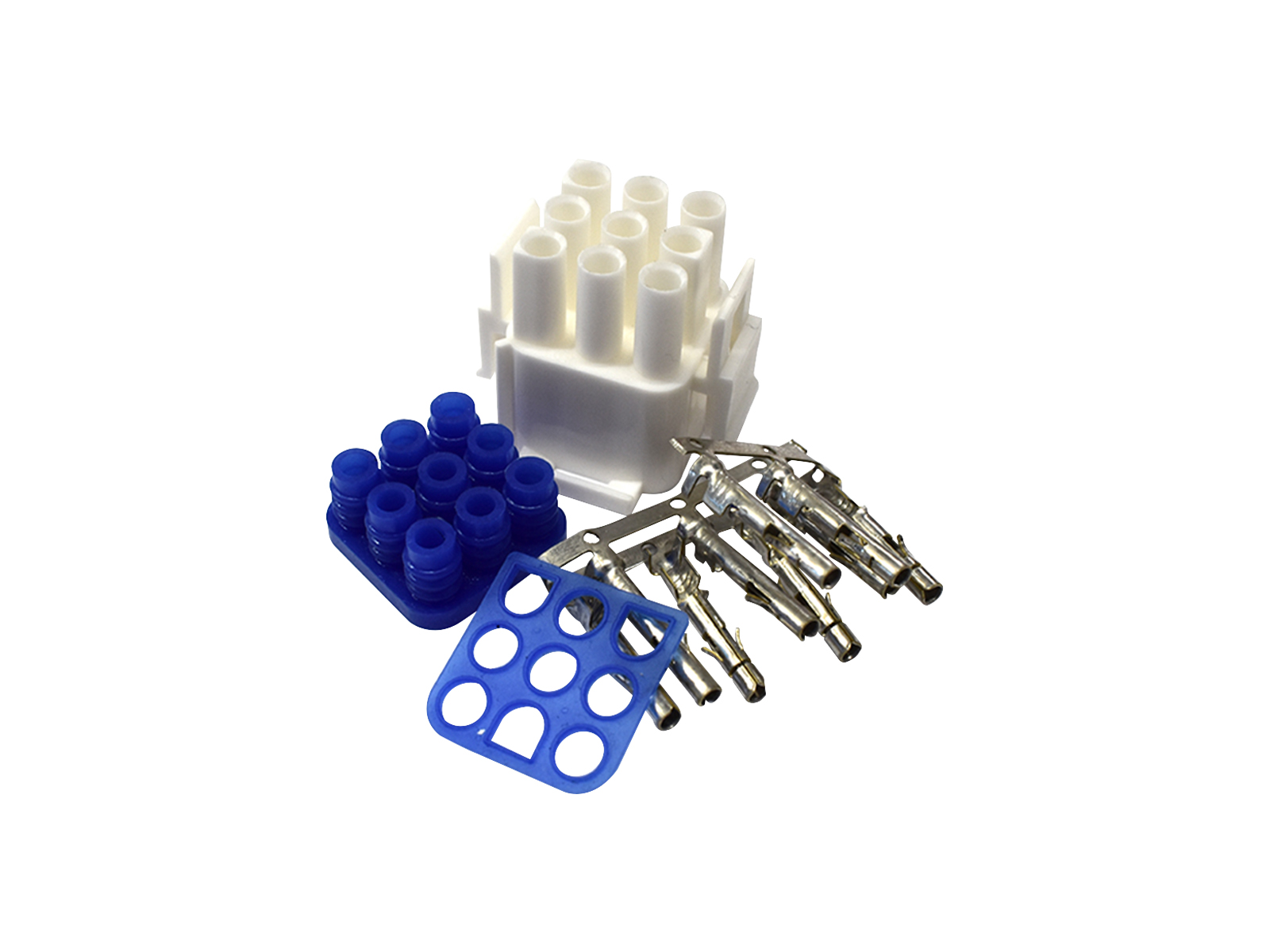

Mini Flasher Kit Components

Mini Flasher Unit – MCS-DMF

This solid state Mini Flasher is a compact unit that has semi conductor switching eliminating the need for relays.

More product information

About the product

The Mini Flasher Unit is ideal to flash LED light heads (without built-in controller) and/or head lamps

Features and functions:

  1. Two independent outputs for off-side and near-side switching
  2. Two separate inputs to switch between ‘steady’ and ‘pause’ modes
  3. 11 Selectable flash patterns
  4. Built-in diagnostic LEDs to indicate flash patterns
  5. Each channel can switch a maximum of 10 Amps
  6. Fully encapsulated with waterproof connector
  7. Cast aluminium casing acts as an effective heat sink
  8. 12 or 24 volt operation
  9. 12 month manufacturers warranty

Downloads

Technical Data

Related products(2)

Indicator Inhibitor Angle View
Control Systems

Indicator Inhibitor Kit

Part number: UNI-DMF-001

The Indicator Inhibitor module is a small device which allows LEDs (flashers) fitted in indicator clusters to be inhibited (interrupted) when the appropriate indicator is activated as part of the vehicles normal operation. The device can be used in conjunction with any 12v switched output or directly connected to the vehicle supply.

Mini Dimmer Angle View
Control Systems

Mini Dimmer Unit

A solid-state compact unit that has semi conductor switching eliminating the need for potentiometers and relays. This operates either as a stand alone device or can be used with an MCS-32 or 16 device to ‘dim’ or ‘brighten’ LED light heads either as individual light heads or groups of lamps.
