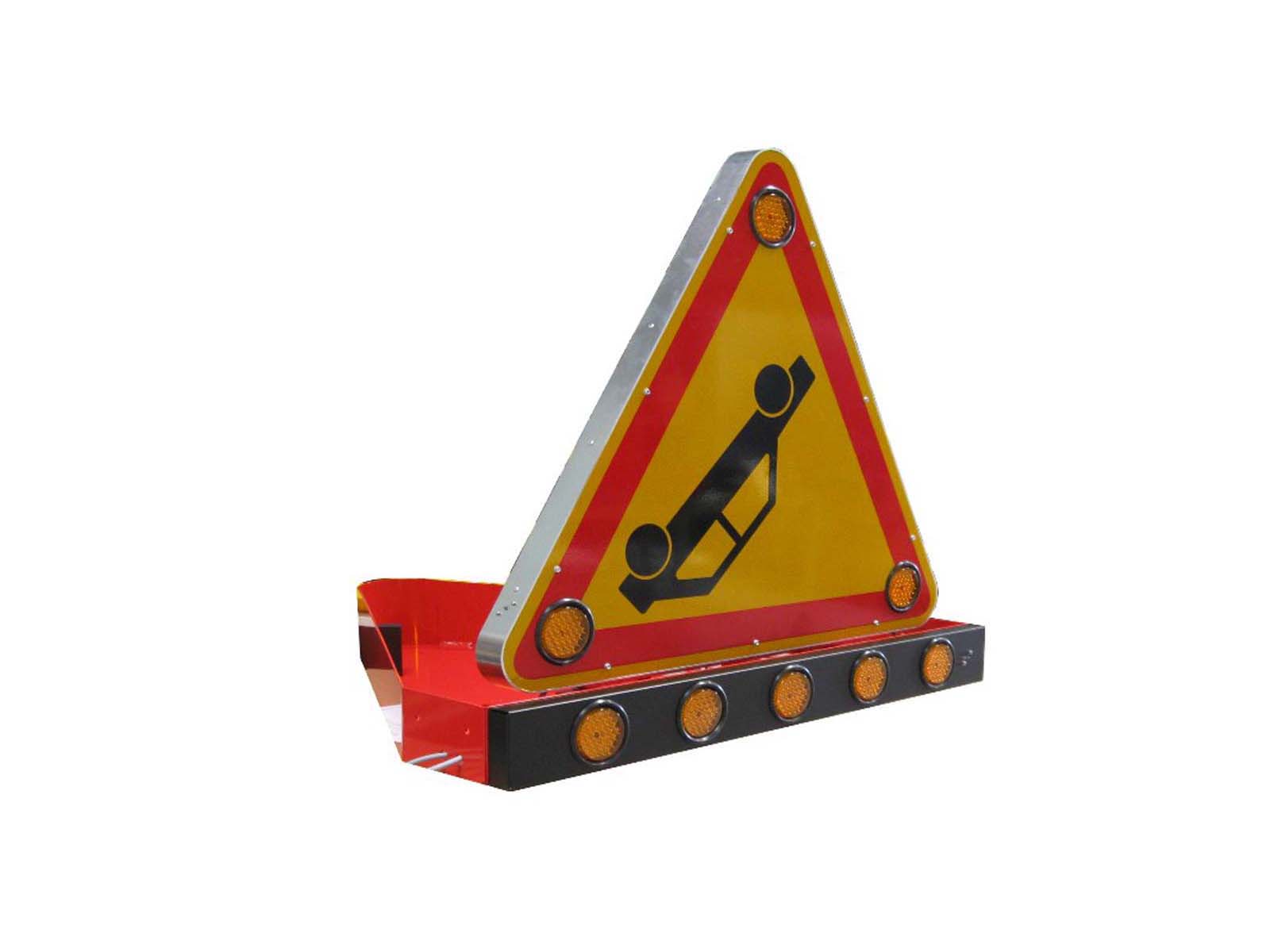

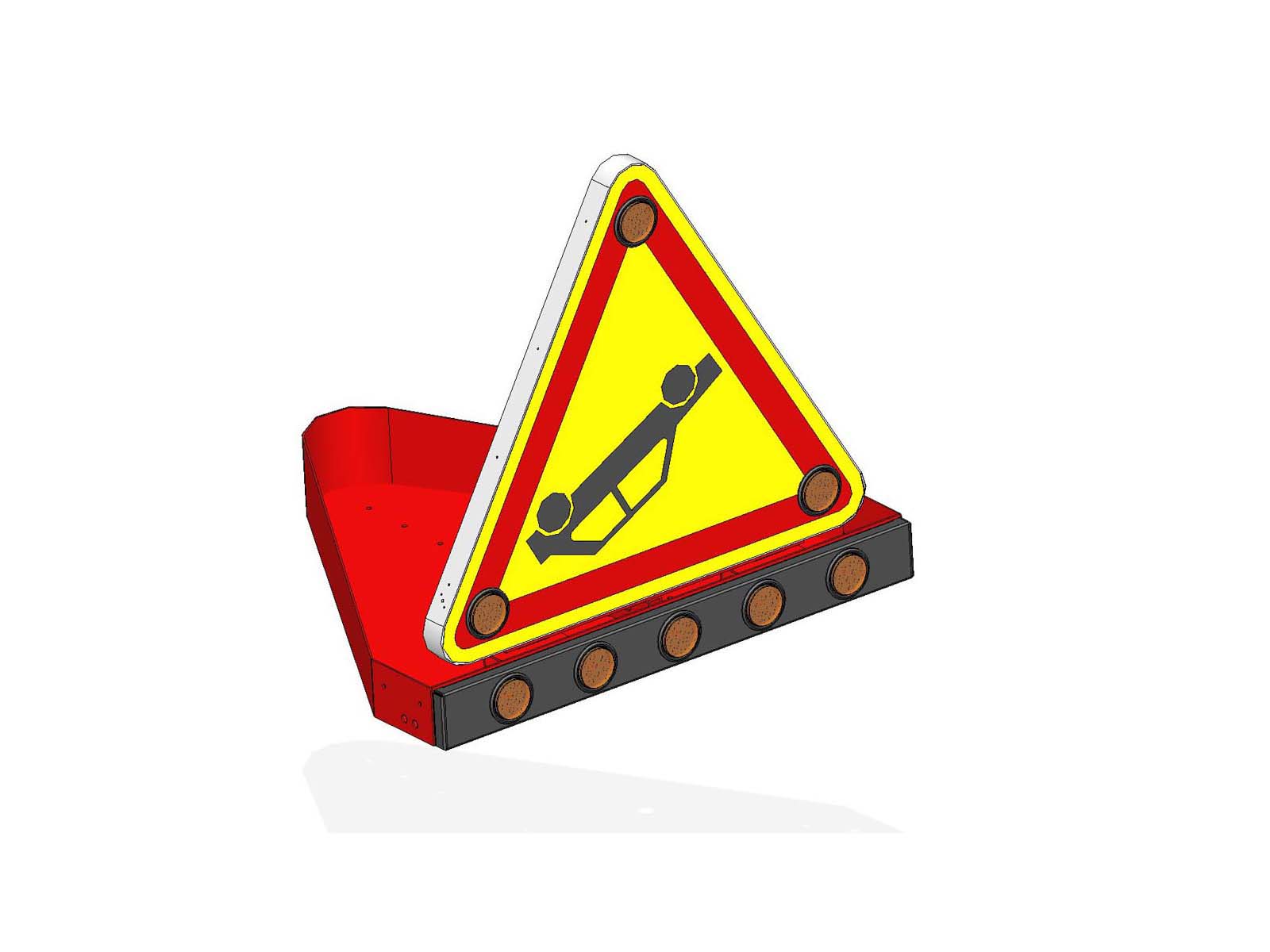

Electric raising encased and painted Triangle

Technical specifications :

• 1000 mm encased triangle with electric pop up system
• Double sided – 74 mm lights O3
• Screen-printed AK14 or AK31, class B
• Automatic day/night light intensity by a light sensor
• Photometric characteristics for Amber 74 mm LED lights : 600 candelas
• NF 12352 classification : L2H, C1 + C2, F2 + F3, O3, T1
• Triangle consumption : 1.2A from 10 to 15V – 360mA at 24V
• Casing in untreated aluminium
• Dimensions of the unit, in mm (height x width x depth) Opened triangle : 930x1030x985 / Folded : 150x1030x985
• Bolt mounting (roof panel to be drilled)
• Adhesive mounting available on option, please consult us.

Options :

• RAL colour to be specified when ordering
• Rear warning lights : 5 x 74-mm amber LED lights, warning mode, all the lights flash simultaneously :
  • NF EN12352 Classification : L2H, C1 + C2, F2 + F3, O1, T1
  • 600 candelas

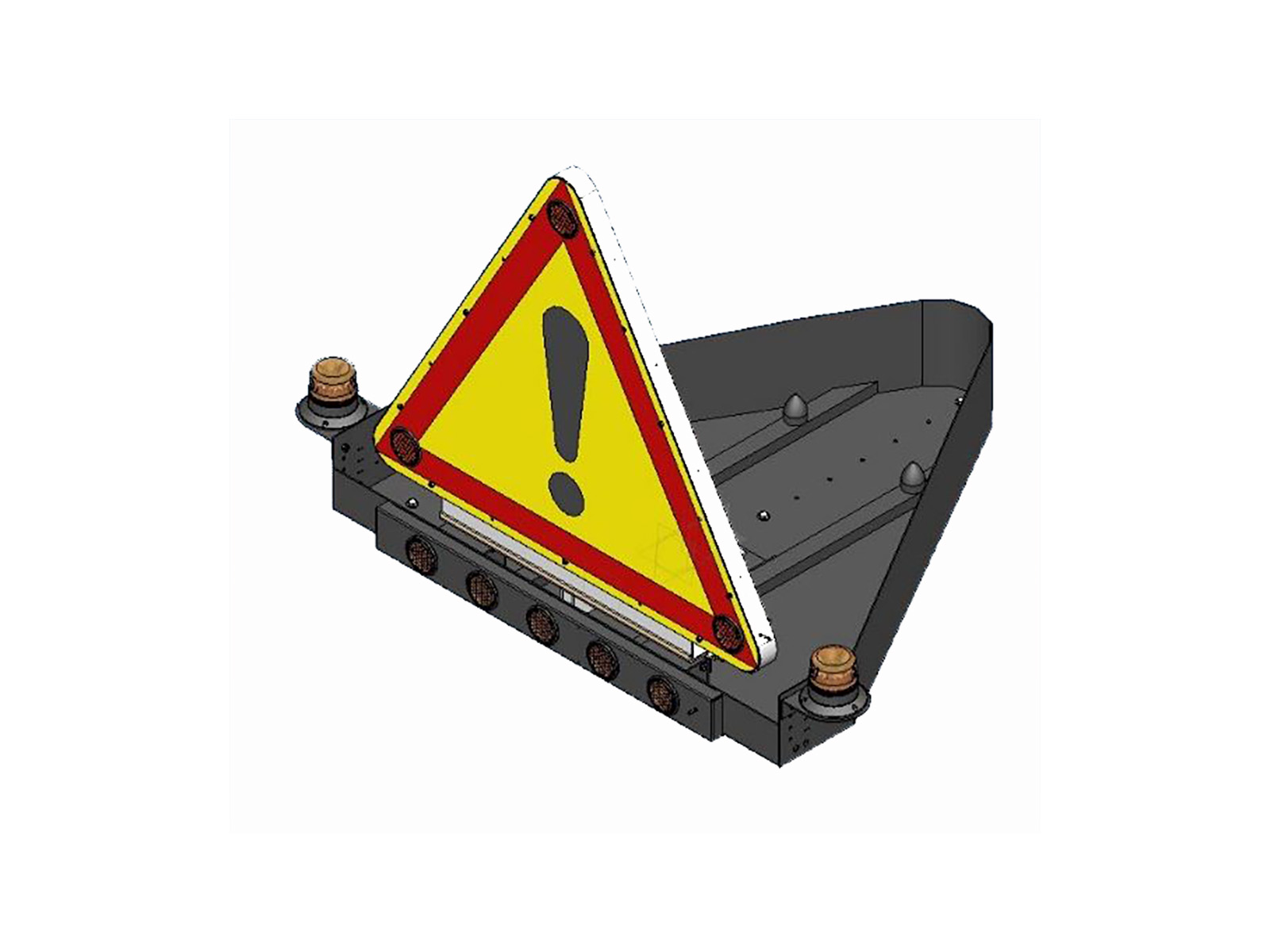

• 2 Gyroleds – mounted on either side of the casing
