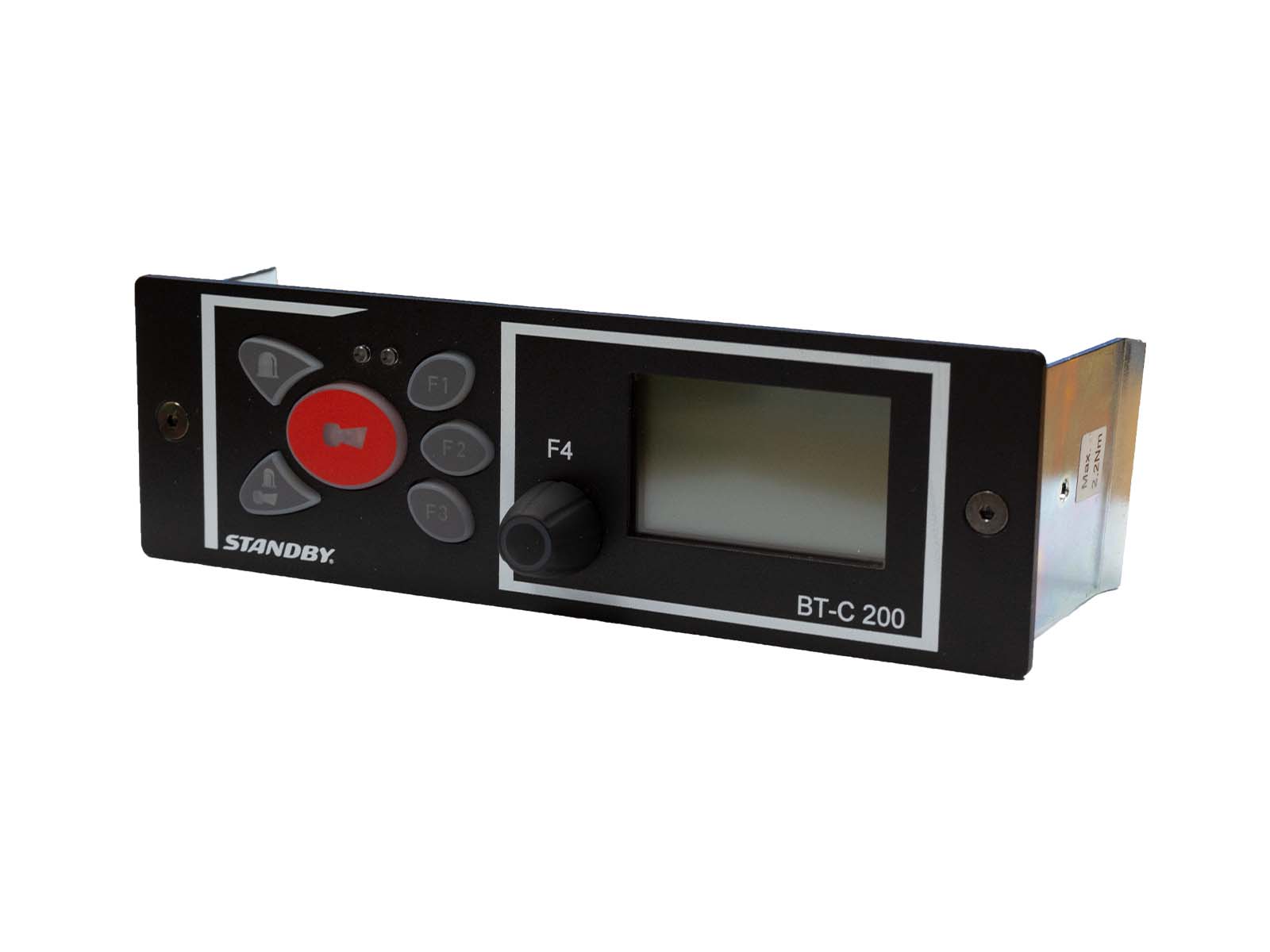

United StatesThe BT-C 200 control panel is used when a large range of functions in light bars and public safety systems has to be activated.
The menu navigation and placement of the individual functions are implemented according to customer requirements.
More product information
About the product
Benefits
CAN-Bus
- CANopen 447
- FireCAN
- SEA J1939-11
- Standby-own Bus
- other CAN protocols on request
Standard functions:
- Rotating beacon ON / OFF
- Horn ring preselection
- Continuous signal
- City / country switching
- Beacon control left / right
Possible functions:
- LED displays ON / OFF
- Front flash OFF / ON
- High power front flash ON / OFF
- ASWs ON / OFF
- Radio main switch
- Voice announcements
- Test function
- further functions on request
Function lock according to customer specifications
Illuminated keys with backlighting (night locator lighting)

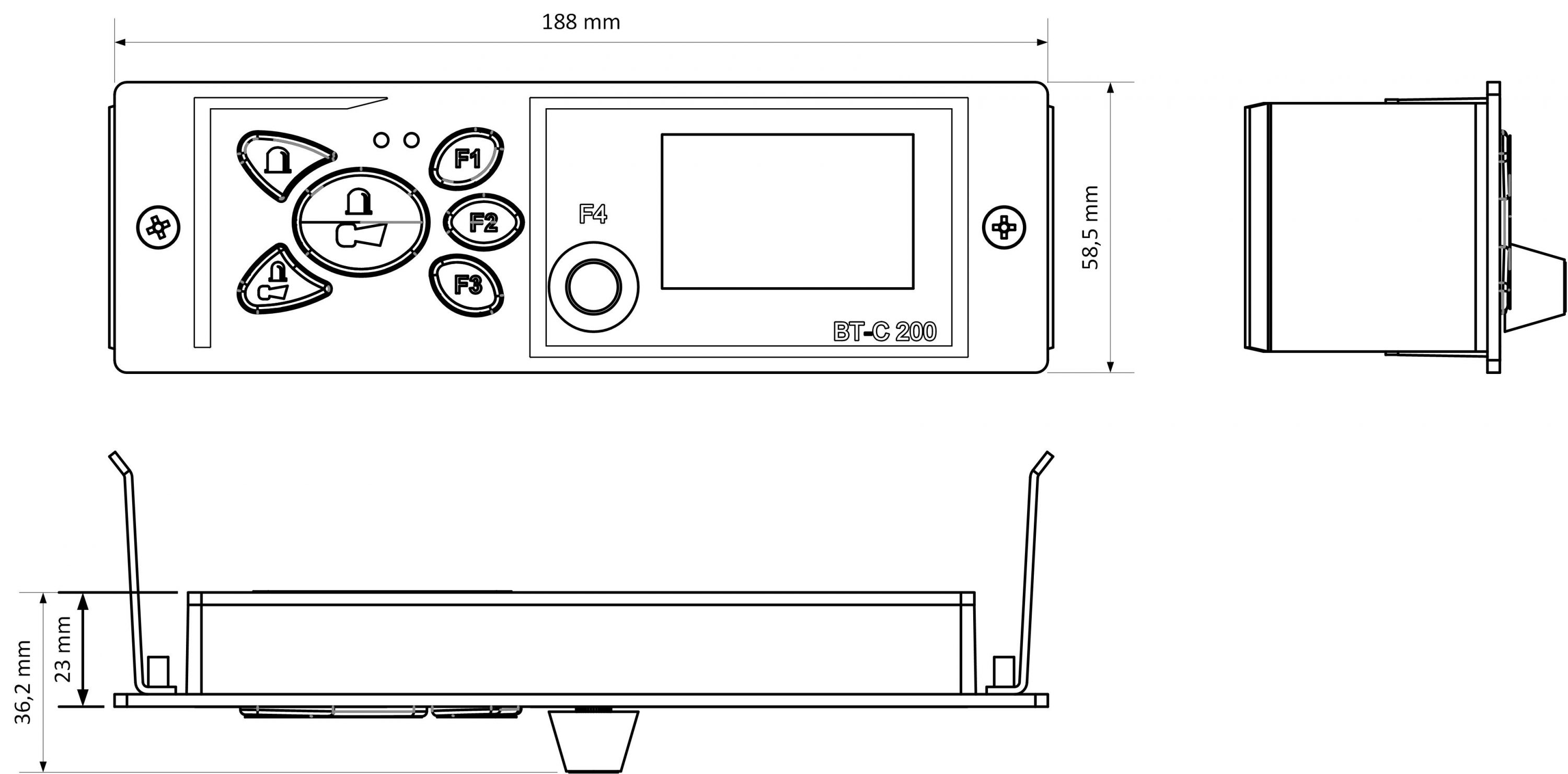

Drawings
Downloads
Technical Data
- Operating Voltage
- 10 - 30 VDC
- Nominal Voltage
- 12/24 VDC
- Current Consumption
- < 100mA in operation
< 0.12mA in standbymode - Interface
- Hard wired, CAN-bus, CiA447
- Number of Buttons
- 7
- Number of Indication LEDs
- 2
- Mounting
- Built-in
- Housing Colour
- Black
- Dimensions
- 188 x 58.5 x 56 mm
- Weight
- 218 g
- Operating Temperature
- -40°C to +70°C
- Storage / Transport Temperature
- -40°C to +80°C
- Approvals
- EMC: e1-036352
