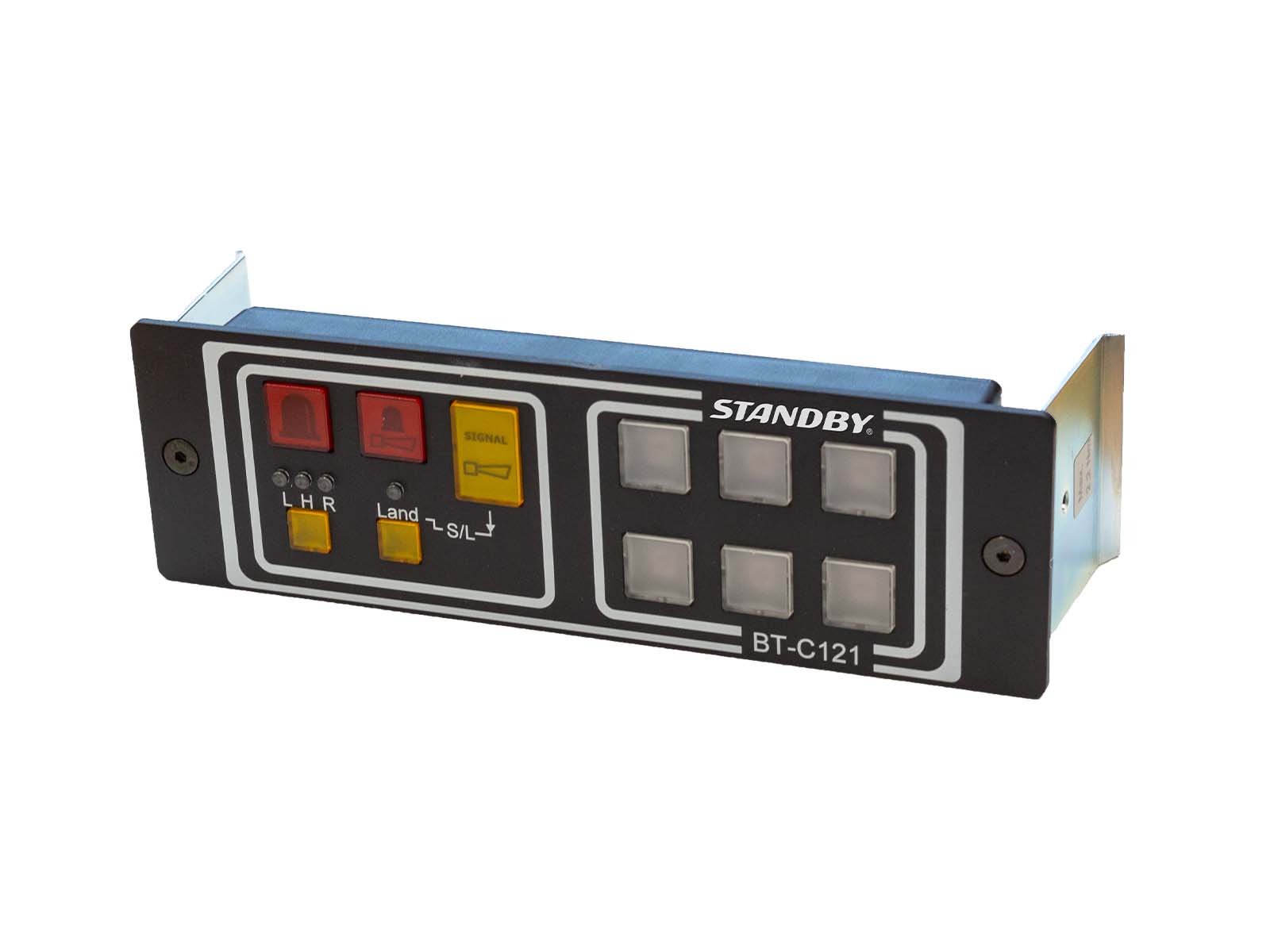

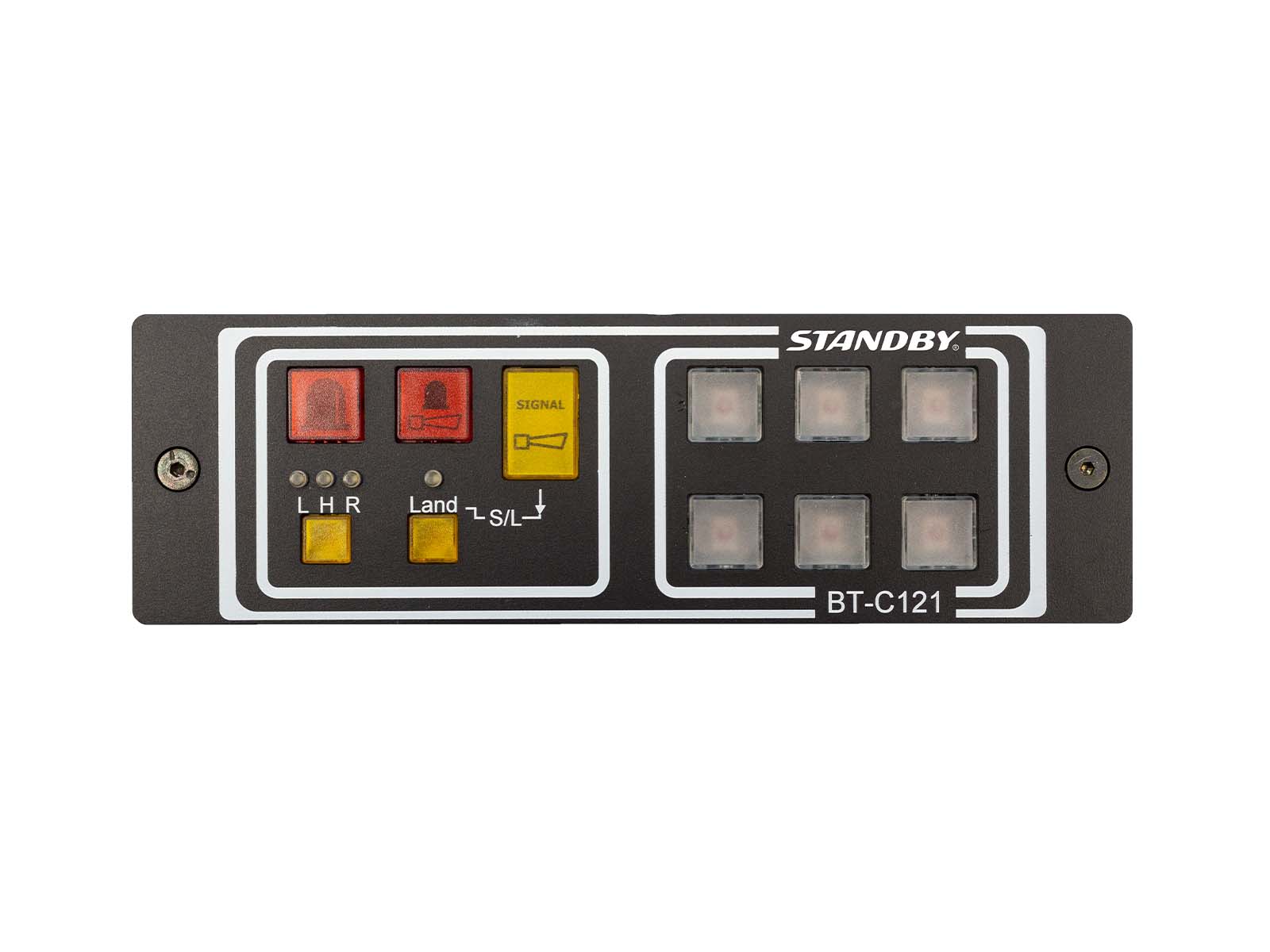

United StatesThe CAN control unit BT-C 121 is suitable for installation in DIN radio slots. Individual assignment of the function keys with dependencies are implemented according to customer
requirements.
More product information
About the product
Benefits
CAN-Bus
- CANopen 447
- FireCAN
- SEA J1939-11
- Standby-own Bus
- other CAN protocols on request
Standard functions:
- Rotating beacon ON / OFF
- Horn ring preselection
- Continuous signal
- City / country switching
- Beacon control left / right
possible functions:
- LED displays ON / OFF
- Front flash OFF / ON
- High power front flash ON / OFF
- ASWs ON / OFF
- Radio main switch
- Voice announcements
- Test function
- further functions on request
Function lock according to customer specifications
Illuminated keys with backlighting (night locator lighting)

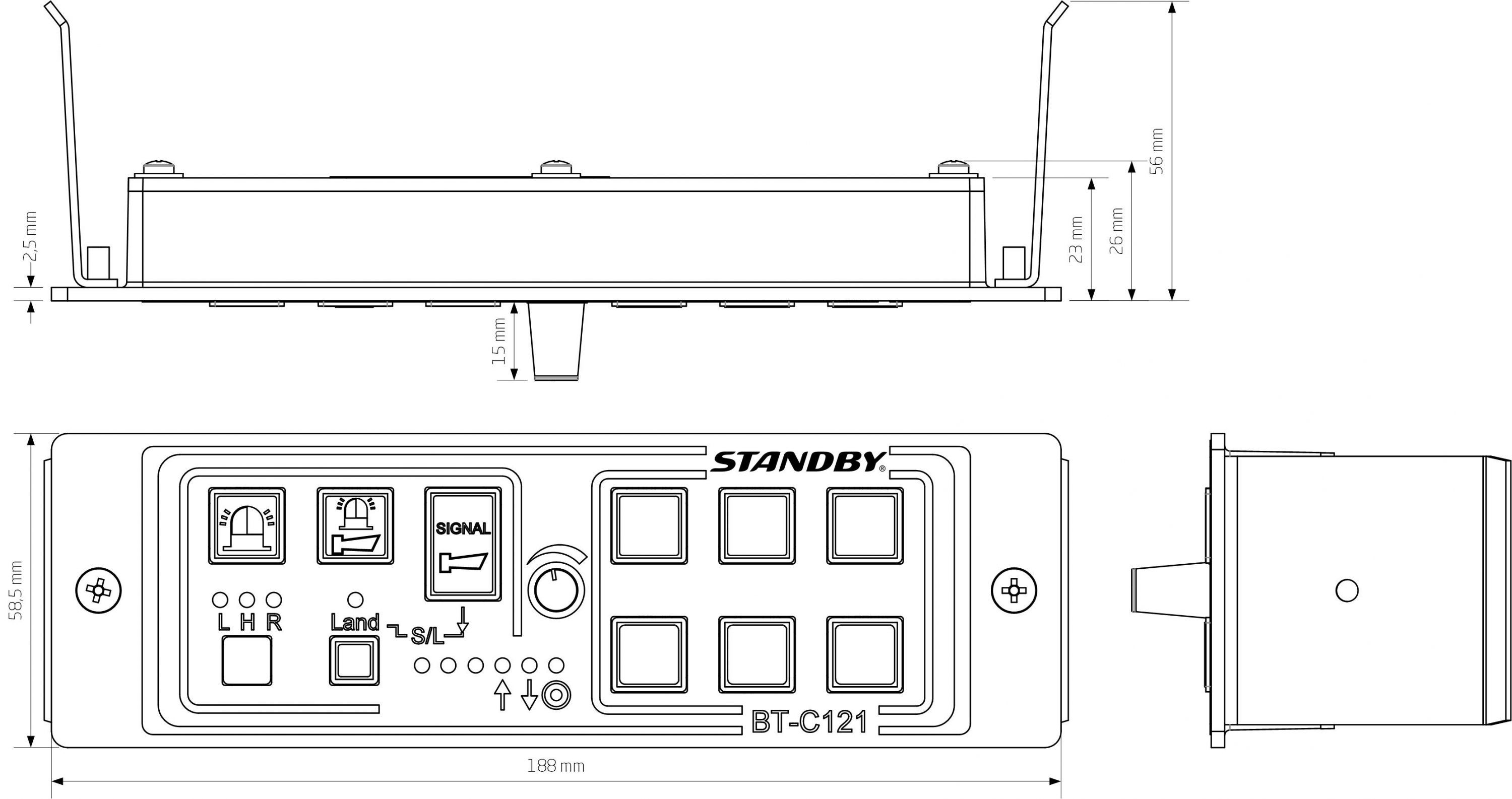

Drawings
Downloads
Technical Data
- Operating Voltage
- 10 - 30 VDC
- Nominal Voltage
- 12/24 VDC
- Current Consumption
- < 100mA in operation
< 0.12mA in standby mode - Interface
- Hard wired, CAN-bus
- Number of Buttons
- 11
- Number of Indication LEDs
- 4
- Mounting
- Built-in
- Housing Colour
- Black
- Dimensions
- 188 x 58.5 x 56 mm
- Weight
- 205g
- Approvals
- e1-036352; EMC
